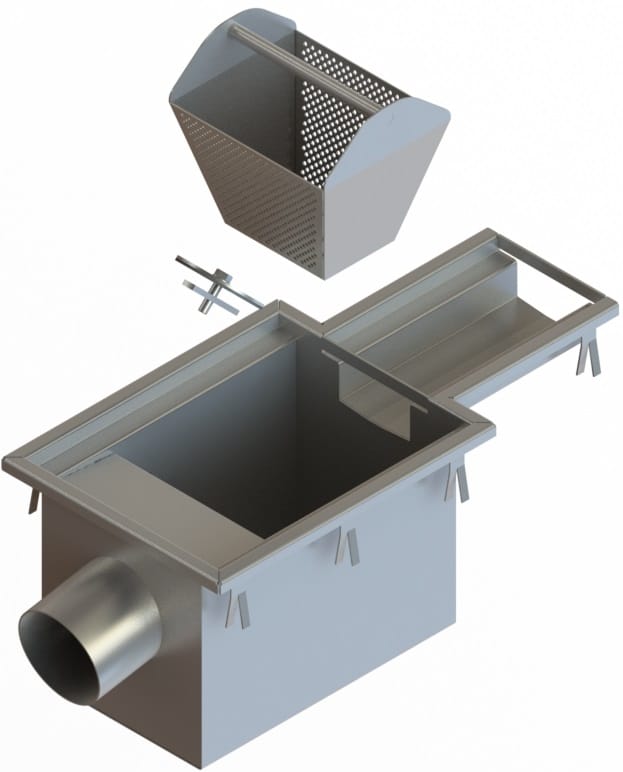

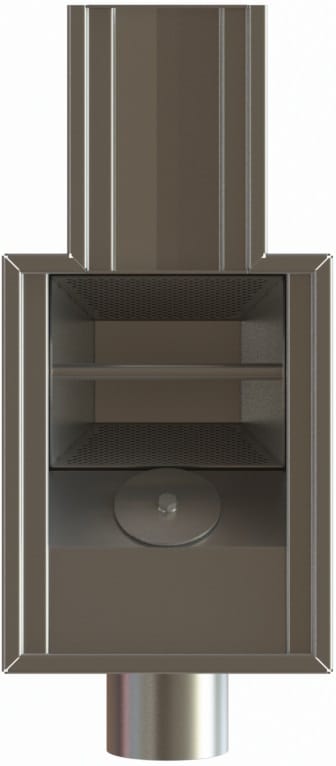

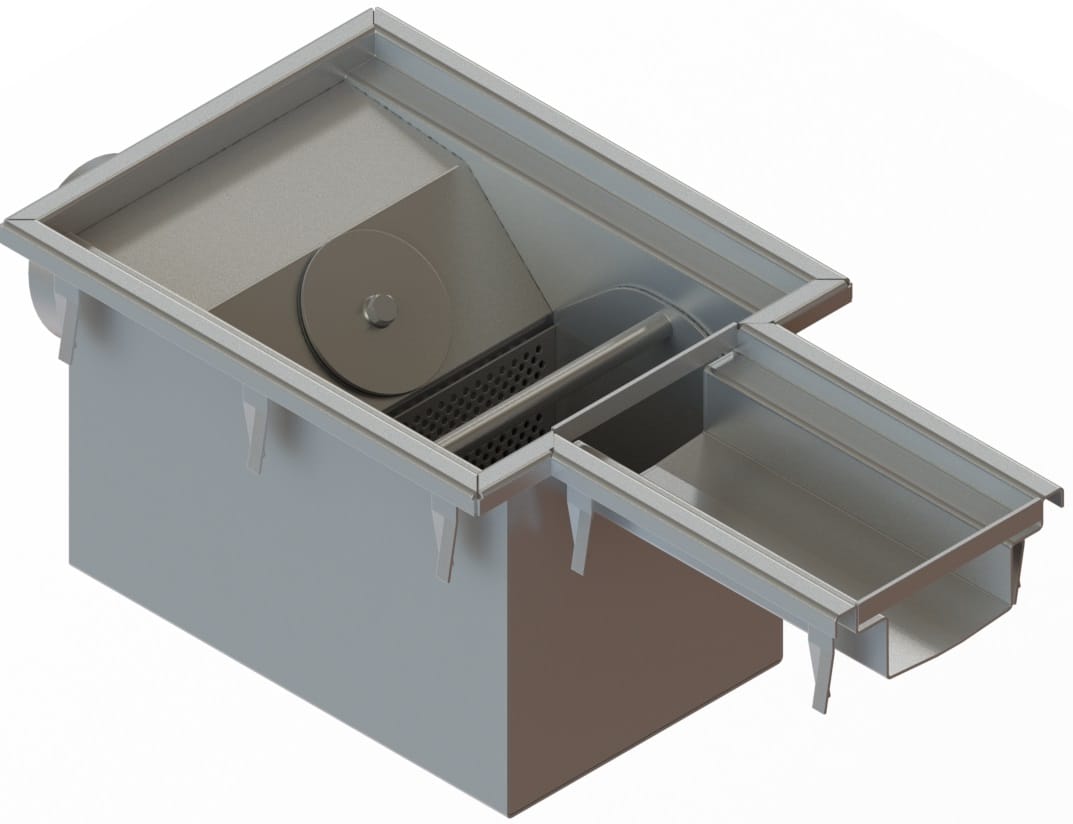

Stainless Diamond End Side Drain Outlet

Product Code: LS-DESIO

Product Details
    Introducing our Stainless Diamond End Side Drain Outlet suitable for all industries.
    Manufactured from 304 or 316 Grade Stainless Steel these drain outlets are fully welded and manufactured in standard sizes and positioned along the length of a drain channel, equipped with rodding eye access.
    End Side Drain Outlets are suitable for hygienic environments for heavy load traffic and the design provides maximum drainage of water to the channel below, providing a robust surface.
    The Drain Outlets are available in the following sizes:
  • 2 Outlet Pipe Sizes: ∅110mm and ∅160mm
  • 2 Channel Width Sizes: 100mm and 170mm
  • Body Material Thickness: 2mm
  • 1 removable basket for waste
  • 50mm Water Trap
  • O/D. 4″/ 6” OUTLET TUBE
    Diamond End Side Drain Outlet LS-DESIO designed for use with our drainage channel LS-DC.

    Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
    Can’t find what you are looking for? We can build it Bespoke!
    We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.
