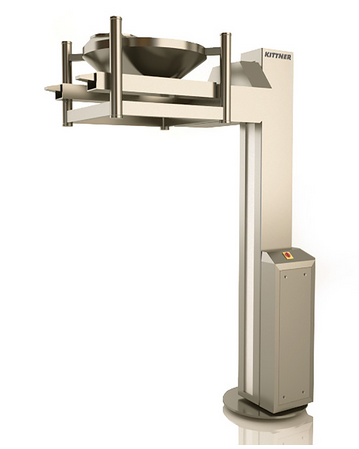

Pharma Single Column Lifter for Tab containers

Product Code: KR-2443004


Product Details
    The Lifter for Tab containers for the pharmaceutical industry is designed to lift and pivot containers with 3 positions.
    Lifter for Tab containers positions are load height (limit switch), discharge height (limit switch) and swivelling height (limit switch).
    It is a static execution with a chain driven operation and has a Dead Man control.
    The Lifter for Tab containers is made entirely out of 304 grade stainless steel and complies with the high CE-Requirements and EU- and USDA regulations.
    The machine has all safety devices such as end switch in upper and lower position and end switch like a stop for the tilting height.
    The maximum height if the lifter is 2500mm with a discharge height of 2300 max with a weight capacity of 350 kg.
    Technical Data
    Power supply: 400 V 50 Hz
    Control voltage: 24 V AC
    Power consumption: 0.75 kW
    Fuse: 10 A
    Ambient temperature: min 4 °C – max 40 °C
    Capacity: max. 350 kg
    Discharge height: 2300 mm
    Lifting speed: approx. 3, 7 m / min.
    Lifting height: 2500 mm
    Weight: 560 kg

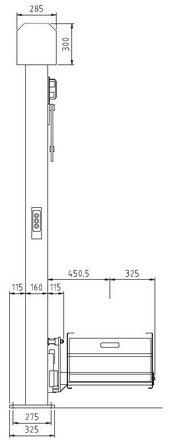

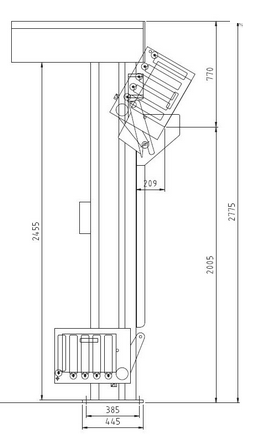

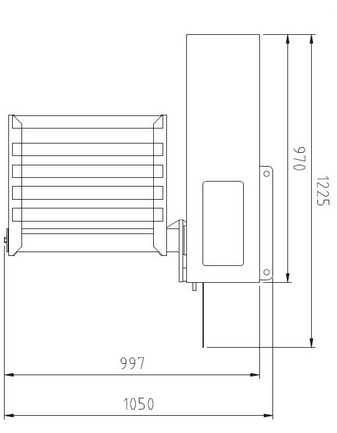

    Machine dimensions: 2990 x 2456 x 1200 mm
    Pallet dim. machine: 3100 х 2500 х 1200 mm
    Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
    Can’t find what you are looking for? We can build it Bespoke!
    We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.

Additional Information

Weight 560 kg
Dimensions 2990 × 1200 cm
