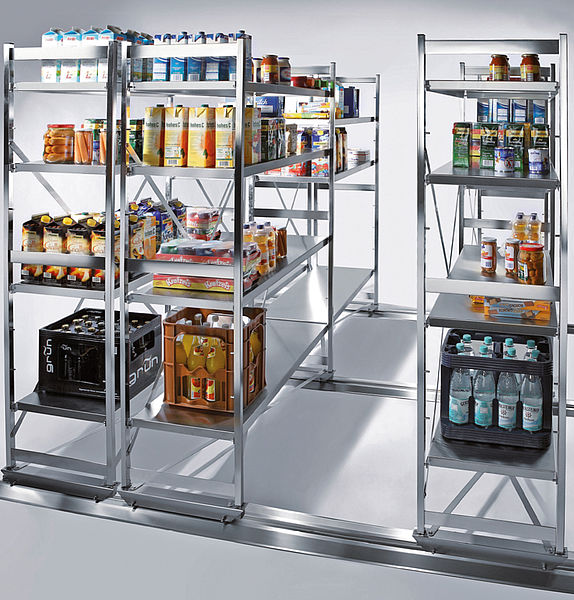

Sliding Shelf System KSA

Product Code: KF-KSA

Product Details
    The sliding shelf system allows you to double your storage space – without any modifications needed to any existing space that may be available.
    This sliding shelf system is especially suitable for cooling rooms. Such storage spaces have relatively high purchase prices and, especially due to the energy costs, lead to consequential costs that cannot be ignored.
    The sliding shelf system KSA quickly and easily increases the capacity of existing storage space for food storage.
    The sliding shelf system KSA is essentially based on the stainless steel shelf system ERS and the aluminium shelf system ARS. To convert these systems into a sliding shelf system, or to re-model from scratch, the following components (as described below) will be needed:
    Bottom Rails
    Made out of stainless steel sheets (AISI 304, brushed surface, 96 x 25 mm).The bottom rails do not need to be screwed to the floor, because thanks to a special profile they ensure high stability, which in turn makes it easy and safe to slide the shelf units.
    The bottom rails can, if joint connectors are used, be extendable and can thus be adapted to the dimensions of the room or to any other obstacles. Screwed plastic end stops stop the shelves from sliding out of the bottom rails. Care should be taken to ensure that the floor under the sliding shelf system is absolutely even.
    Portable Undercarriages
    Made out of folded stainless steel sheets (AISI 304, brushed surface) with built-in fastening caps to ensure safe mounting of the individual shelves. The portable undercarriages are equipped with ball bearing castors that ensure easy and safe moving of the shelf system. The portable undercarriages are screwed to each other using cross bracings. Depending on the design, the undercarriages are available for single and double-rowed shelf systems.
    Shelf construction systems
    All shelf systems of the product lines ARS and ERS can be implemented into a sliding shelf system. The shelves, depending on the design of the movable undercarriages, are arranged in single or double rows (back to back).

      A portable shelf unit can consist of max. 2 shelf bays with a total length of up to 3000 mm.
      Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
      Can’t find what you are looking for? We can build it Bespoke!
      We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.
