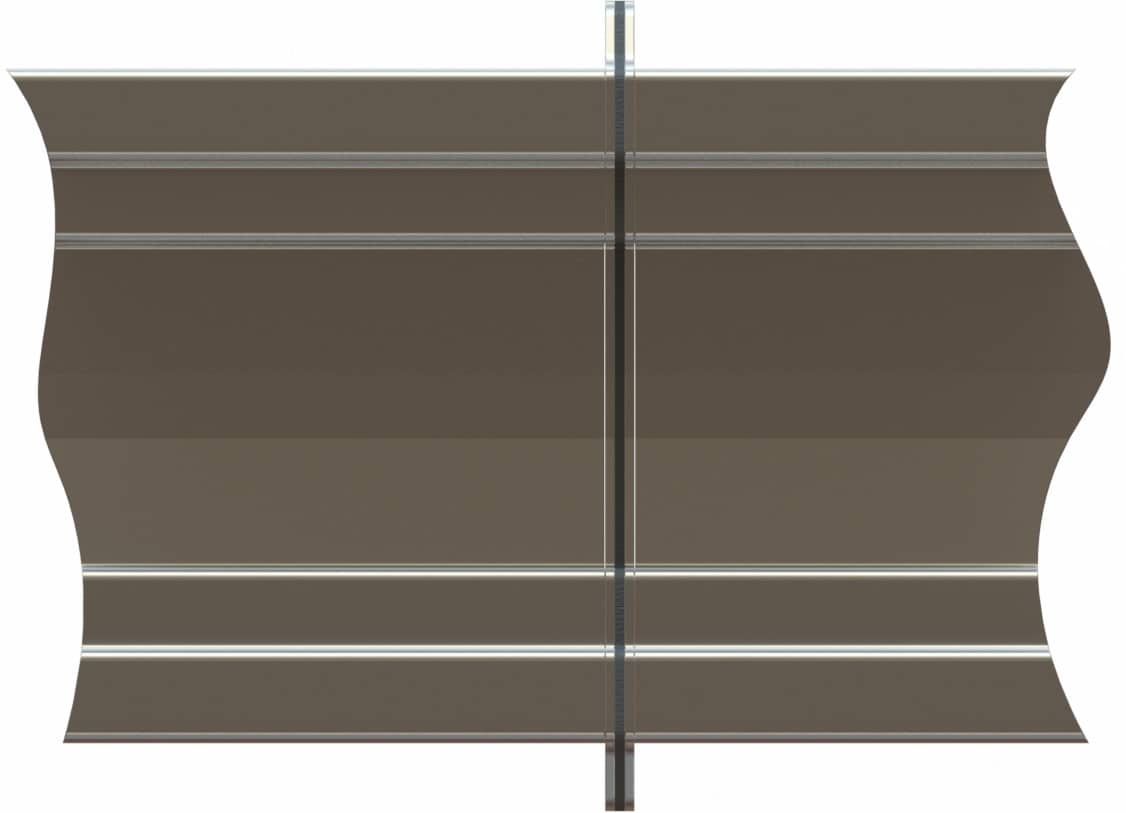

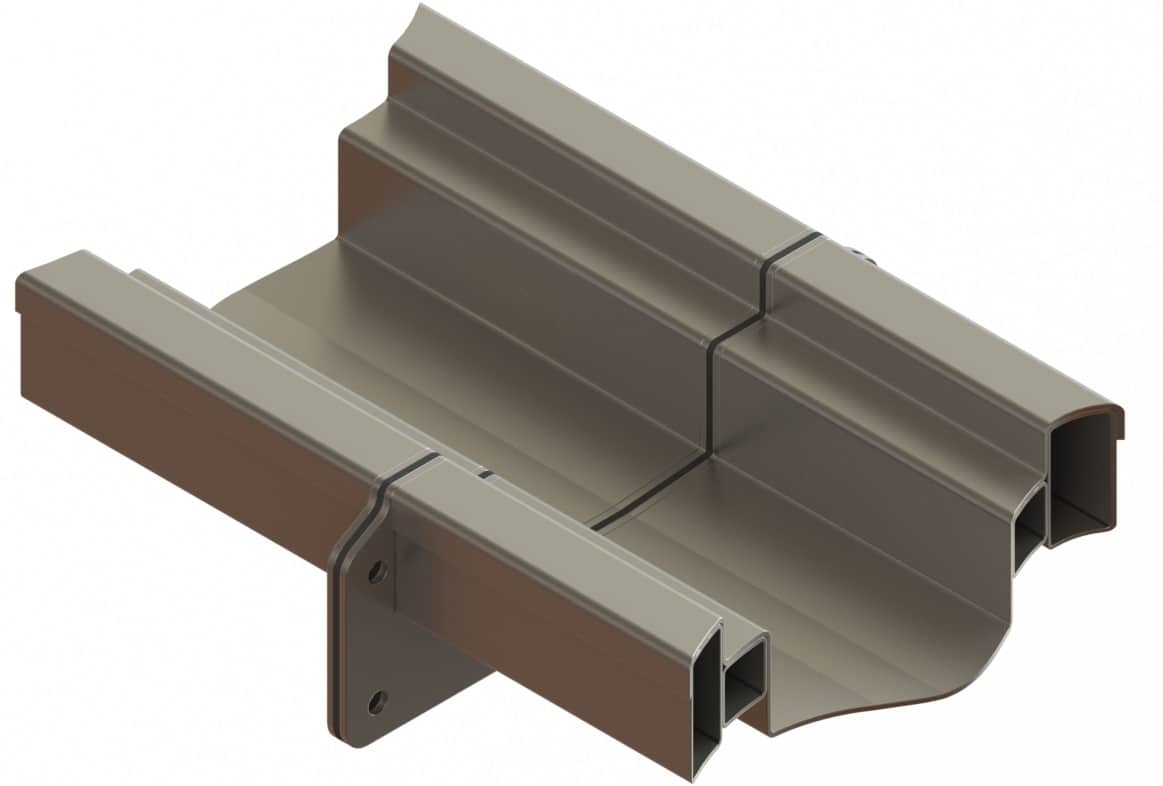

Stainless Flanged Gasket and Bolted Joint

Product Code: LS-FGBJ


Product Details
    The stainless flanged gasket and bolted joints are designed to bolt drain channels together. This is an alternative to onsite welding which can save a lot of time.
    The joint is available for use with any of our channels in a variable depth. Our simple design provides an easy to clean surface.

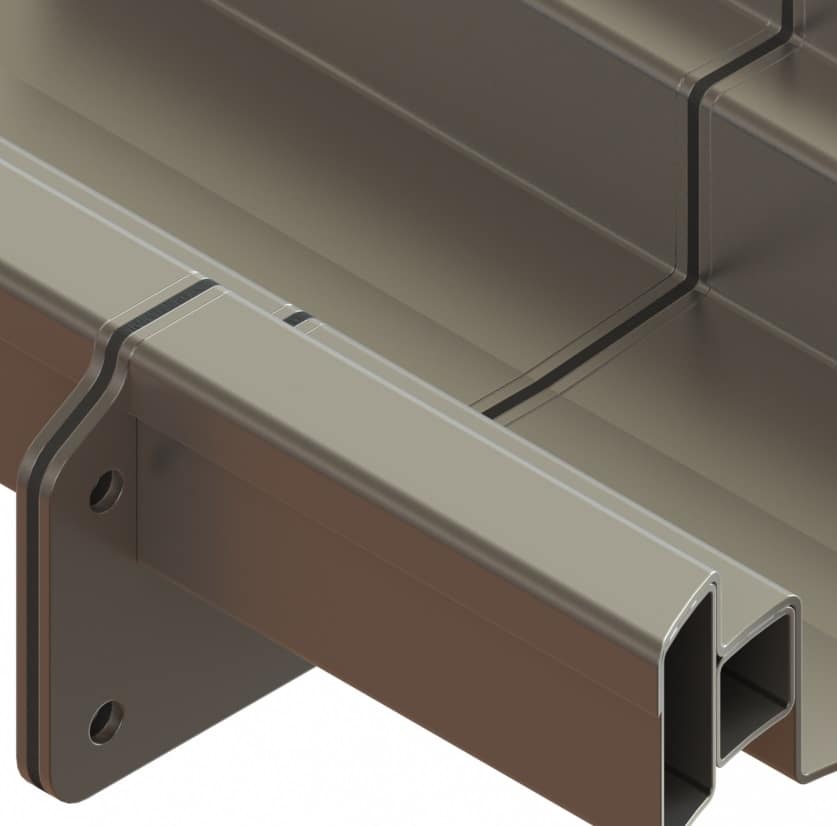

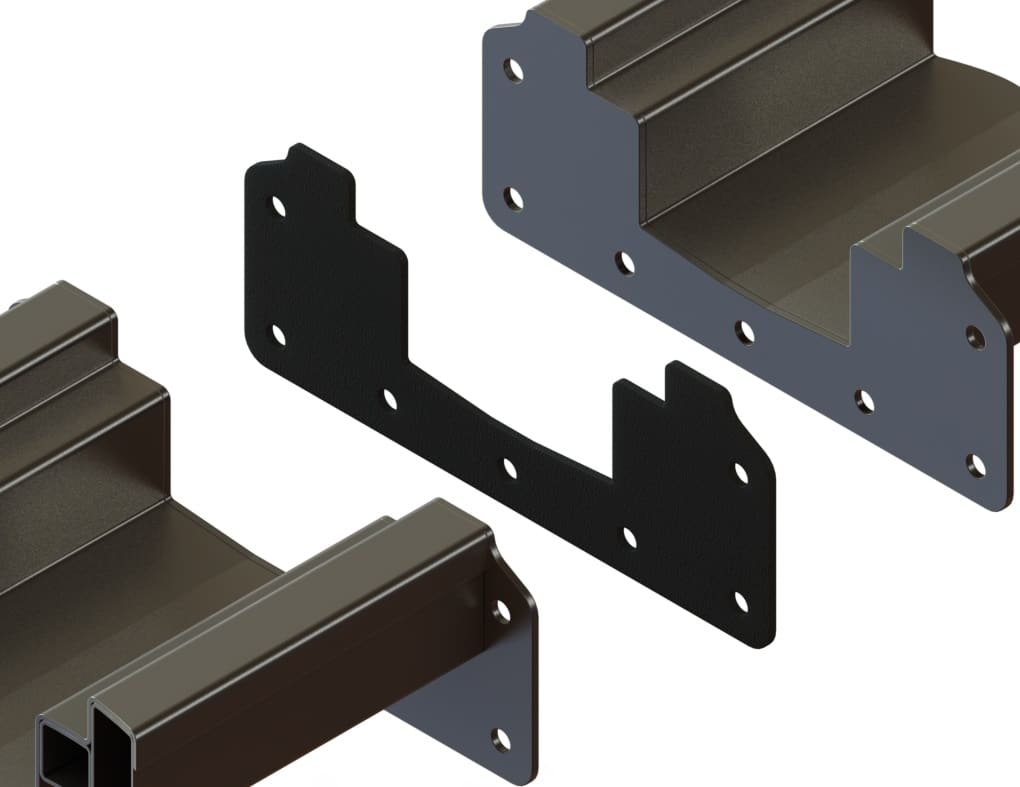

    Between the two flanges a neoprene gasket is added to form a water tight seal.
    Sizes:
  • 100mm
  • 170mm
  • 300mm

;

    Technical Data:
  • 3mm thick Stainless Steel
  • Sand Blast Finish
  • Available in 3 widths
    Flanged gasket and bolted joints LS-FGBJ are designed for use with our Drain Outlets.

    Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
    Can’t find what you are looking for? We can build it Bespoke!
    We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.
