Aluminium Shelving System

Product Code: KF-ARS

Product Details

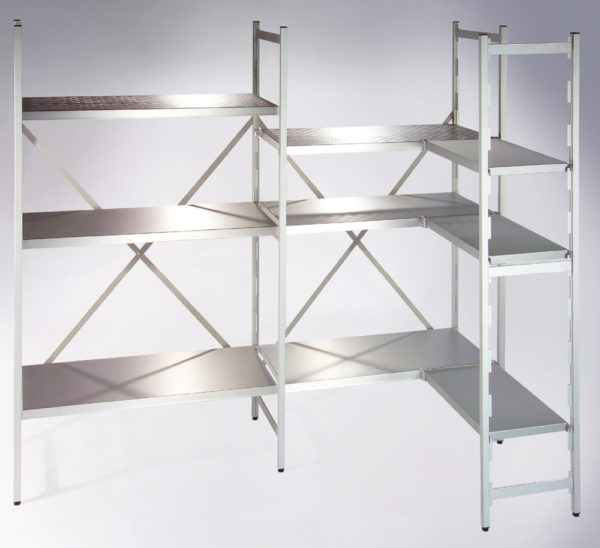

The LS Engineering aluminium shelving system ARS is design as a modular system and therefore offers multiple possible combinations, combined with a high load capacity and safe stability under load.

Only high-quality aluminium alloys silver-coloured (E6EV1) anodised are used, ensuring optimum safety and longevity.

The ARS shelving system is easily suited for hygienic food storage in both refrigerated and non-refrigerated environments.

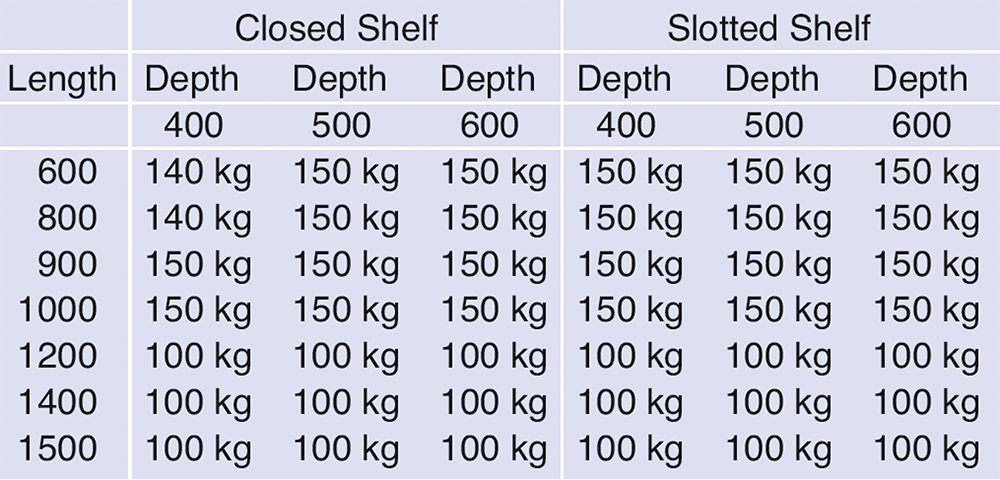

The shelving system has a shelf load of 600kg. The maximum shelf load can be calculated by the sum of the separate shelf loads per section.

Shelving Uprights: The shelving uprights are made of aluminium 25mm sq tubes with adjustable feet. End caps are all manufactured in plastic.

The shelves are adjustable in height with a pitch available at 165mm variants. Depending on the height, the uprights are stabilised with 2 or 3 traversal flat profiles of 40 x 6mm.

Standard and Perforated Shelves: The shelves are made of aluminium sheets, folded 40mm on all sides. The front side is hygienically crimped to the inner side. Depending on the length and depth the shelve can be additionally supported with a bottom tie.

Corner Constructions (90°): In order to attach two shelving systems in a 90° angle, a solid corner is maintained with a rigid plastic attachment unit.

Cross Braces: The cross braces are screwed together with the uprights to guarantee a firm and safe stand of the shelving system. With every third attached shelf an additional cross brace is required.

The dimensions of the cross brace are adapted to suit the particular board or shelf length.

    Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
    Can’t find what you are looking for? We can build it Bespoke!
    We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.
