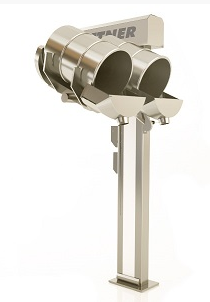

Double Barrel or Drum Static Single Column Lifter/Tipper

Product Code: KR-2422308


Product Details
    The lifter for Double Barrels is designed predominately for the chemical industry but can also be used in the food and pharmaceutical industry and for various types of drum containers.
    The lifter tipper for double barrels and drums is designed for lifting and emptying the contents of the barrels and drums into machines or other containers.
    Upon reaching the maximum or required height the barrels or drums are then emptied either via a right or left hand execution.
    Once contents emptied the lifter will descent back to ground level where the barrels or drums can be filled once again for a repeat process.

ul>It is a static execution with a chain driven operation and has a Dead Man control.

    The Lifter for Barrels and drums is made entirely out of 304 grade stainless steel and complies with the high CE-Requirements and EU- and USDA regulations.
    The maximum height if the lifter is 1900mm and is adjustable in 100 mm steps. It has a max weight capacity of 300 kg. Special executions are available on request.
    Technical Data
    Power supply: 400 V 50 Hz
    Control voltage: 24 V AC
    Power consumption: 0.75 kW
    Fuse: 10 A
    Ambient temperature: min 4 °C – max 40 °C
    Capacity: max. 300 kg
    Tilting height: max. 1900 mm, in 100 mm steps down adjustable
    Lifting speed: approx. 5 m / min.
    Total height by tilting: 2940 mm
    Weight.: 500 kg

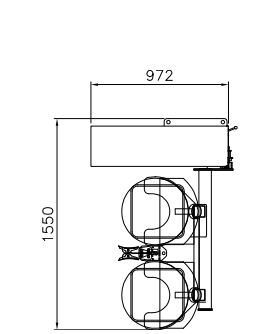

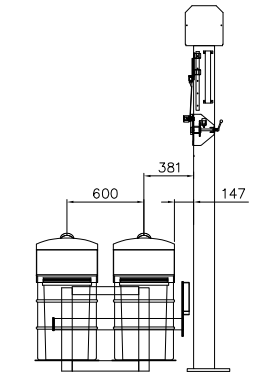

    Machine dimensions: 2807 x 1550 x 972 mm
    Pallet dim. machine: 3000 х 1100 х 1200 mm
    Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
    Can’t find what you are looking for? We can build it Bespoke!
    We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.

Additional Information

Weight 500 kg
Dimensions 2807 × 972 cm
