Double Column Lifter / Tipper inc Mesh Guarding

Product Code: KR-2445001


Product Details
    The Double Column Lifter is designed for the execution of lifting and tipping of 200 / 700 L containers with a max weigh capacity of 1000 kg.
    The Safety Fence, Double Column Lifter and forks are made entirely out of 304 Grade Stainless Steel.
    The safety fence on the Double Column Lifter is equipped with interlocking doors to prevent accidents and has the control panel assessable from the outside of the fence.
    The machine complies with the high CE Requirements and EU- and USDA regulations. Special executions on demand.
    Technical Data



    Power supply: 400 V 50 Hz
    Control voltage: 24 V AC
    Power consumption: 2,2 kW
    Fuse: 10 A
    Ambient temperature: min 4 °C – max 40 °C
    Capacity: max. 1000 kg
    Tilting height: 2350 mm
    Lifting speed: approx. 4,3 m / min.
    Total height by tilting: 3800 mm
    Weight: approx. 1500 kg

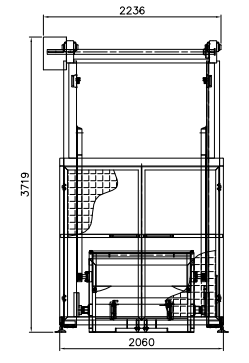

    Machine dimensions: 2267 х 1954 х 3719 mm
    Pallet dim. machine: 3750 х 2400 х 2500 mm
    Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
    Can’t find what you are looking for? We can build it Bespoke!
    We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.

Additional Information

Weight 1500 kg
Dimensions 2267 × 3719 cm
