Static Lifter for Mixing Bowls – Single Column Tipper

Product Code: KR-2432102

Product Details
    The Lifter for Mixing Bowls is mainly used in the bakery industry and is designed for lifting and emptying the contents of the large mixing bowl.
    Upon reaching the maximum height the mixing bowl is then emptied either via a right or left hand execution.
    Once contents emptied the lifter will descent back to ground level where the mixing bowl can be filled once again for a repeat process.
    It is a static execution with a chain driven operation and has a Dead Man control.
    The Lifter for Mixing Bowls is made entirely out of 304 grade stainless steel and complies with the high CE-Requirements and EU- and USDA regulations.
    The maximum height if the lifter is 2050 mm and is adjustable from 1550mm in 100 mm steps. It has a max weight capacity of 600 kg. Special executions are available on request.
    Technical Data
    Power supply: 400 V 50 Hz
    Control voltage: 24 V AC
    Power consumption: 1,5 kW
    Fuse: 10 A
    Ambient temperature: min 4 °C – max 40 °C
    Capacity: max. 600 kg
    Tilting height: 1550 – 2050 mm (5x100mm adjustable)
    Lifting speed: approx. 3,2 m / min.
    Total height by tilting: 3585 mm
    Own weight: 450 kg

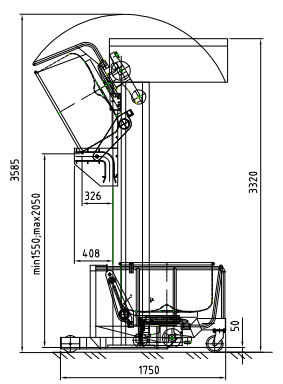

    Machine dimensions: 2054x 1782 x 3320 mm
    Pallet dim. machine: 3500 x 2500 x 700 mm
    Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
    Can’t find what you are looking for? We can build it Bespoke!
    We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.

Additional Information

Weight 450 kg
Dimensions 2054 × 3320 cm
