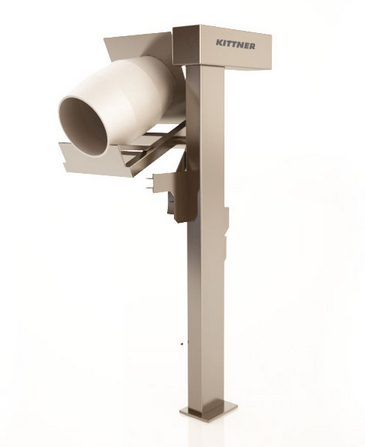

Drum/Barrel Static Single Column Lifter/Tipper

Product Code: KR-2422301


Product Details
    The lifter for Barrels or drums is designed for 120l plastic barrel for the food and pharmaceutical industry.
    The lifter tipper is designed for lifting and emptying the contents of the barrels and drums into machines or other containers.
    Upon reaching the maximum or required height the barrel or drums are then emptied either via a right or left hand execution.
    Once contents emptied the lifter will descent back to ground level where the barrel or drum so it can be filled once again for a repeat process.
    It is a static execution with a chain driven operation and has a Dead Man control.

      The Lifter for Barrel and drum is made entirely out of 304 grade stainless steel and complies with the high CE-Requirements and EU- and USDA regulations.

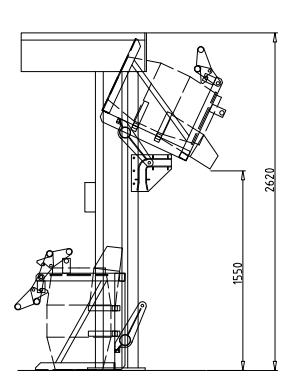

      The maximum height if the lifter is 1550mm and is adjustable in 100 mm steps. It has a max weight capacity of 300 kg. Special executions are available on request.
      Technical Data
      Power supply: 400V 50 Hz
      Control voltage: 24 V AC
      Power consumption: 0.75 kW
      Fuse: 10 A
      Ambient temperature: min 4 °C ÷ max 40 °C
      Capacity: max. 300 kg
      Tilting height: 1050- 1550 mm (5x100mm adjustable)
      Lifting speed: approx. 5 m / min.
      Total height by tilting: 2700 mm
      Weight: 400 kg

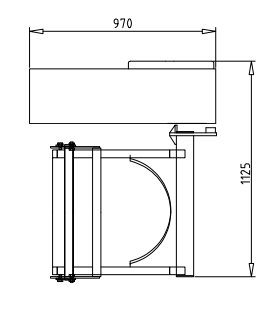

      Machine dimensions: 1170 x 1170 x 2420 mm
      Pallet dim. Machine: 3000 x 1225 x 700 mm
      • View our full range of high quality stainless steel

    Lifting & Tipping Equipment

      .
      Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
      Can’t find what you are looking for? We can build it Bespoke!
      We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.

Additional Information

Weight 400 kg
Dimensions 790 × 2620 cm
