Pharma FBD Bowl Lifter/Tipper for Liquids and Bulk Materials

Product Code: KR-2443001


Product Details
    The Lifter for Liquids and bulk materials for the pharmaceutical industry is designed to lift and pivot the contents in 3 positions.
    Lifter for Liquids and bulk materials positions are load height (limit switch), discharge height (limit switch) and swivelling height (limit switch).
    This machine can be made to suit customers requirements.
    It is a static execution with a chain driven operation and has a Dead Man control.
    The Lifter for Liquids and bulk materials is made entirely out of 304 grade stainless steel and complies with the high CE-Requirements and EU- and USDA regulations.
    The machine has all safety devices such as end switch in upper and lower position and end switch like a stop for the tilting height.
    The height of the lifter is depending on what container it is emptying in and the weight capacity of 300 – 1000kg.
    Technical Data
    Power supply: 400 V 50 Hz
    Control voltage: 24 V DC
    Power consumption: 1,0 kW
    Ambient temperature: min 4 °C – max 40 °C
    Capacity: max. 300 kg (to 1000 kg)
    Tipping height: depending on the container – for bulk or Liquids
    Lifting speed: approx. 5 m / min.
    Rotation speed: 3,6 min-1
    Weight: 600 kg

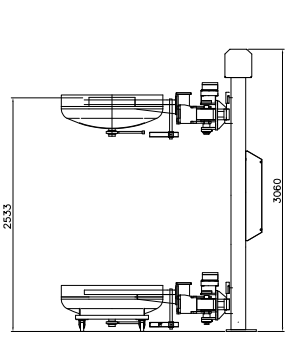

    Machine dimensions: 3060 x 1475 x 1909 mm

Pallet dim. machine: 3300 x 1100 x 1000 mm

      Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
      Can’t find what you are looking for? We can build it Bespoke!
      We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.

Additional Information

Weight 600 kg
Dimensions 3060 × 1909 cm
