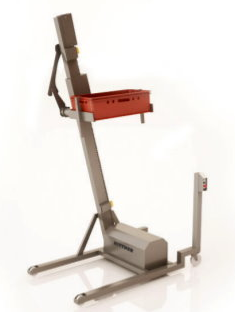

Mobile Lifter for Euro Container

Product Code: KR-2421310


Product Details
    Our Mobile Lifter for Euro Container is for the lifting and tilting of E1, E2 and E3 container
    Available in left or right execution.
    The emptying of the Mobile Lifter for Euro Container takes place over its narrow side of the container.
    Mobile execution. “Dead man”- controlled downwards movement.
    Chain drive. Corpus in stainless steel, material No. 1.4301.
    The max. tilting height 2000 mm.
    The machine complies with the high CE- Requirements and EU- and USDA regulations.
    Special executions on demand.

    Technical Data

    Power supply: 400V 50 Hz
    Control voltage: 24 V DC
    Power consumption: 0.55 kW
    Fuse: 10 A
    Ambient temperature: min 4 °C ÷ max 40 °C
    Capacity: max. 50 kg
    Tilting height: 1800 mm
    Lifting speed: approx. 7 m / min.
    Lifting principle: via roller chain

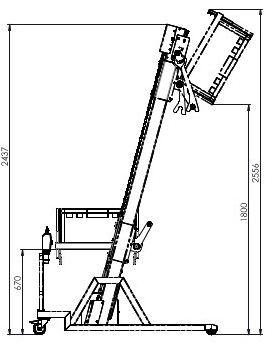

    Total height by tilting: 2556 mm
    Weight: 100 kg
    Machine dimensions: 2437 x 735 x 1460 mm



    Please contact the office for more information or simply click enquire on the product to send a direct email to our sales team.
    Can’t find what you are looking for? We can build it Bespoke!
    We manufacture bespoke solutions so should you see something that is similar or have an idea in mind please contact the sales team who will be happy to help.

Additional Information

Weight 100 kg
Dimensions 2437 × 1460 cm
